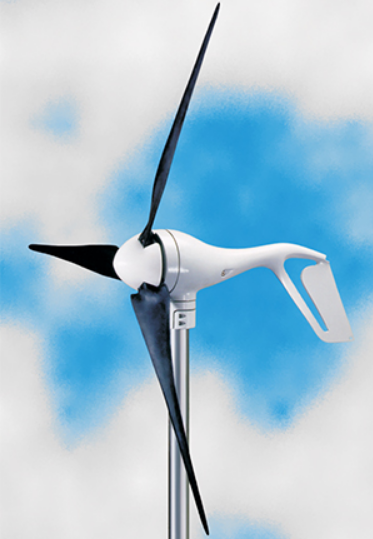

AIR X MARINE™ WIND TURBINES - Designed With Built-in Regulator and Marine Grade Paint
| Item#SWS384 |
Available in 12V, 24V & 48V Configurations
When you need energy in marine environments, our AIR X Marine delivers. It's hands down the best energy choice for off-grid marine-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection -- you name it. With optimized software, AIR X Marine consistently delivers energy where it matters. The AIR X Marine’s heavy-duty design can withstand most high wind environments. The AIR X Marine is an ideal turbine for hybrid combinations with solar PV. AIR X Marine is built and backed by the worldwide leader in small wind.
- High-quality, third-party tested components for reliability and safety
- Pair with solar PV for redundant energy production year-round
- Advanced microprocessor technology for superior performance and high wind protection without mechanical braking
- Lightweight design is simple and easy-to-install; integrated power electronics for plug-and-play operation
- Produces 30 kWh of energy a month* for marine-based, high wind applications
- Intended for corrosive - marine environments
| Technical Specifications | |
| Energy | Approx. 30 kWh/mo at 5.8 m/s (13 mph) |
| Swept Area | 1.07 m2 (11.5 ft2) |
| Rotor Diameter | 1.17 m (46 in) |
| Weight | 5.9 kg (13 lb) |
| Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed | 3.58 m/s (8 mph) |
| Voltage | 12, 24 VDC |
| Turbine Controller | Mircoprocessor-based smart controller |
| Body | Permanent mold cast aluminum |
| Blades | (3) Injection-molded composite |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 49.2 m/s (110 mph) |
| Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
| Wind Speed Operating Range | 3.6-22 m/s (8-49 mph) |
| Optimum Wind Speed Range | 11-15 m/s (25-32 mph) |
| Marine_Air_X__Spec_Sheet_7-2013.pdf |
| Air_X_Marine_Manual.pdf |
