The Renogy 800W 12V/24V Monocrystalline Solar System w/Rover 60A Charger Controller - A Complete Kit (including wiring and electrical specs)
The Renogy 800W 12V/24V Premium Kit is easy for you to install, and it is the most economical choice for the off-grid adventurer. Renogy Solar Kit comes with solar panels, charge controllers, and needed electrical wiring, fuses, and monitoring typically required for an off-grid installation, making it ideal for off-grid and mobile applications.

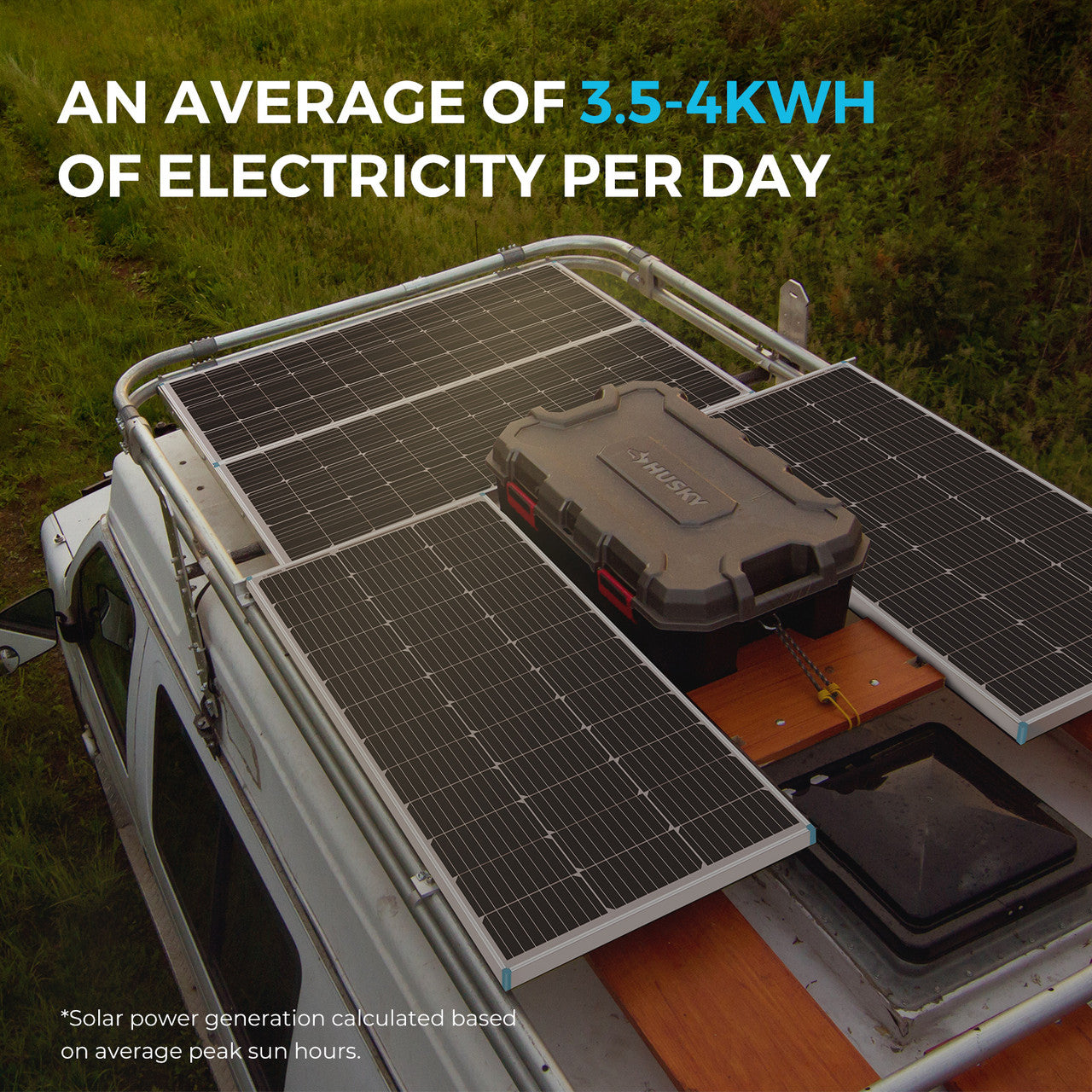

The Premium Kit will produce an average of 3.5-4kWh of electricity per day (Based on 5 hours of direct sunlight conditions). The 8 x 100W solar panels don't take up much roof space, but their energy can offset some large-size loads such as television, washing machine, electric stove, etc. With the Rover Li 60A MPPT charge controller, the kit can meet your further power needs by adding more of the same solar panels; for example, a 24V system expandable up to 1600W.
The Premium Kit can build a reliable and environmentally friendly power supply, perfect for a yard, barn, RV, boat, or camper. It can also be installed in a ground mount system next to off-grid campsites, as a power supply for outdoor appliances and emergencies, or as a stand-alone power system for water pumps, greenhouses, or other remote structures and machinery.
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL | |
Maximum Power: 100W | Maximum System Voltage: 600V DC (UL) |
Open-Circuit Voltage (Voc): 24.3V |
Optimum Operating Voltage (Vmp): 20.4V |
Short-Circuit Current (Isc): 5.21A | Optimum Operating Current (Imp): 4.91A |
Dimensions: 41.8 x 20.9 x1.4 in | Weight: 14.1lbs/6.4kg |
ROVER LI 60A MPPT SOLAR CHARGE CONTROLLER | |
Rated Charge Current: 60A | Rated Load Current: 20A |
Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V |
Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C) |
Self-Consumption: 0.7W-1.2W | Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in) |
Weight: 7.9lbs | Enclosure: IP32 |
Terminals: 25mm2 4AWG | |
RENOGY 8FT 4AWG TRAY CABLES (A PAIR) | |
Length: 8ft | AWG: 4 |
Rating Voltage: 600/1000V |
Temperature: -40°F to +185°F |
RENOGY 2FT 4AWG ANL FUSE CABLE | |
Length: 2ft | AWG: 4 |
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV | Temperature: -40°F to +194°F |
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR) | |
Length: 20ft | AWG: 10 |
Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
RENOGY 15A SOLAR CONNECTOR FUSE HOLDER W/FUSE | |
Rated Current: 15A | Rated Voltage: 1000V DC |
Contact Material: Copper, Silver Plated | Replaceable Fuse: Cylindrical PV Fuse (10x38mm) |
