AIMS Power's 130 Watt Portable Foldable Solar Panel Pre-wired and Built In Carrying Case Monocrystalline
Featuring AIMS Power's, foldable and portable solar panel, made with high quality monocrystalline solar cells and a water resistant rugged case.

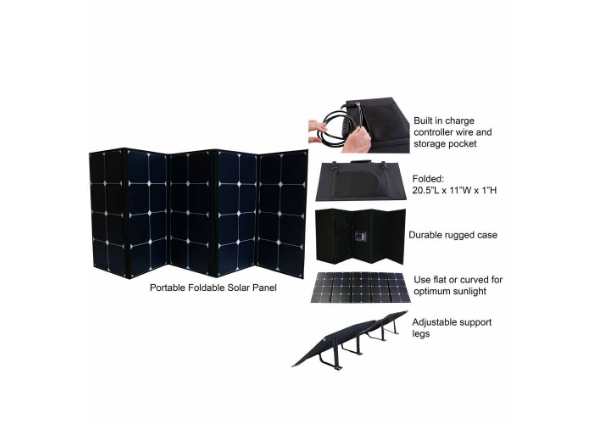

This portable solar power panel quickly folds and unfolds into a compact carrying case for easy set-up and storage.
One the front of the carrying case, there is a zipper pocket to store a small charge controller. The foldable panel also includes a built in 6 foot charge controller wire allowing for quick connection to various size charge controllers.
The carrying case is water resistant, includes adjustable support legs and a comfortable rubber handle.
Backed by a 10 year warranty and weighing in at 6.5 pounds, this portable solar panel is a must for every remote application needing power. Easy to move between vehicles.
Constructed with high quality material and advanced monocrystalline solar cells for efficient energy harvest
• Built in solar charge controller cable 6ft
• Ideal for curved and uneven surfaces. RVs, boats, bus, vans, utilities, golf carts, bikes and back packs
• Portable and easily adjusts to the optimum sunlight angle using support legs
• Accordion style fold up case
• Weather resistant. Appropriate for outdoor use.
• Durable and rugged case with convenient side zipper pocket to store wires and charge controller
• Lightweight and super thin allowing for easy storage and set up
• Bypass diode minimizes the power drop when shaded
• Reverse current protection
• Modules are independently tested to ensure conformance with certification and regulatory standards
• Manufacturing facility certified to ISO 9001 quality management system standards
• Panels capable of +/- 3% power efficiency than rated
• 5 year warranty, 10 year 80% output
| Specifications | |
| High Performance | light transmittance up to 93% |
| Cell Efficiency | 22.3% |
| Module Efficiency | 19.2% (one of the highest) |
| Maximum Power | 130W |
| Tolerance Wattage (e.g. +/- 5%) | +/- 5% |
| Maximum System Voltage | 600V DC (UL) |
| Max Power Voltage (Vmp) | 22 V |
| Max Power Current (Imp) | 5.91 A |
| Open-Circuit Voltage (Voc) | 26.4 V |
| Short-Circuit Current (Isc) | 6.35 A |
| Power Tolerance | 0=+3W |
| Maximum Fuse Rating | 10 A |
| Fire Safety Class | Class A |
| Temperature Range | -40⁰F to 185⁰F |
| Number of cells | 2 x 4 x 5 |
| Charge controller PV Wire | 10 AWG with spade connect easily connects to various charge controllers |
| Temperature Coefficients ⁰C | |
| ISC(%) | +2.6 |
| Voc(%) | -50.6 |
| Prm(%) | -.38 |
| Im(%) | +2.2 |
| Vm(%) | -60.8 |
| Dimensions | Expanded 20.6 X 55.9 X 0.19 inches |
| Weight | 6.5 lb |
| Certifications | CE, ETL, TUV and RoHS |
| Advantages | |
| Water resistant | |
| Durable rubber handle | |
| Easy side slide buckles | |
| Convenient size zipper pocket for wires and charge controller storage | |
| 5 Year Warranty, 10 year 80% output |
