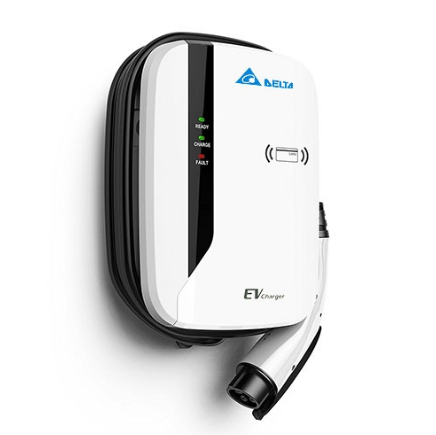

Delta EV AC 30 Amp RFID Networked Charging Station 18'
Delta AC Mini is a 208-240V/30A level 2 EVSE with advanced communication functions. The UL certified charger supports dynamic current adjustment for demand response with Wifi. Thanks to its compact size and unique wiring compartment design, the installation-friendly charger is an ideal choice for both private and public use.
Applications:
- Service Station
- Parking
- Residential
- Commercial
- Fleet
Key Features :
• Stylish ergonomic design
• RFID card reader for user authentication
• Wired/wireless network capability for back office integration
• Robust Type 3R ingress protection and IK8 vandal-proof casing
• Cost-saving delay timer for off-peak EV charging
• SAE J1772 standard compliance
• Stylish ergonomic design
• RFID card reader for user authentication
• Wired/wireless network capability for back office integration
• Robust Type 3R ingress protection and IK8 vandal-proof casing
• Cost-saving delay timer for off-peak EV charging
• SAE J1772 standard compliance
| Power Input | |
| Input Rating | 208-240 Vac, single phase, 30 A maximum, 60 Hz |
| Connections & Wiring | L1, L2, and Ground, hardwired w/ terminal block |
| Standby Power | < 5 W |
| Metering | Embedded non-revenue grade meter with 1% accuracy |
| Power Output | |
| Output Rating | 208-240 Vac, single phase, 30 A maximum, 60 Hz, 7.2 kW maximum |
| Cold-Load Pickup | Randomized delay before charge resume after power failure |
| Protection | |
| Internal Residual Current Detection | 20 mA CCID per UL 2231 |
| Upstream Breaker | 2-pole 40 A breaker on dedicated circuit, non-GFCI type |
| Plug-Out Protection | Power output is terminated upon detection of charging connector plug-out |
| Electrical Protection | Over Current, Short Circuit, Over Voltage, Under Voltage, Ground Fault, Surge Protection, Over temperature |
| User Interface & Control | |
| Status Indicators | Standby (green), Charging (flashing green), Fault (red), Warning (flashing red) |
| Buttons/Switches | Charger On/Off, Stop Charging (Economic model) / Charger On/Off, Stop Charging, Delay Timer (Smart Model) |
| Delay Timer | Delay charging for 2, 4, 6, or 8 hours, adjustable (only w/Smart Model) |
| User Authentication | RFID, ISO14443 Type A (Mifare), ISO 14443 Type B (only w/Smart Model) |
| Communication | |
| Network interface | Ethernet, Wi-Fi (standard); 3G, GPRS (optional) (only w/Smart Model) |
| Environmental | |
| Operating Temperature | -22 ℉ to +122 ℉ (-30 ℃ to +50 ℃) |
| Humidity | 95% relative humidity, non-condensing |
| Mechanical | |
| Charging Cable Length | 18 ft (5.5 m), straight cable |
| Ingress Protection | Type 3R |
| Mounting Type | Wall-Mount (standard); Pedestal-Mount, Pole-Mount (optional) |
| Cooling | Natural cooling |
| Dimension (W x H x D) | 13.8 x 15.7 x 5.0 inch (350 x 400 x 126 mm), excluding charging cable, support bracket and cable holder |
| Net Weight | 15.4 lb (7 kg) |
| Regulation | |
| Certificate | UL, cUL |
| Charging Interface | SAE J1772 compliant charging plug |
