Hybrid Solar Wind 3.7KW 48 VDC backed by Simpliphi Storage Solution
This hybrid energy system features the Primus AIR 40 Wind Turbine and 12 Peimar 310 Watt Mono Solar panels. An AIMS Power 4000 watt Pure Sine Inverter/Charger combination intelligently directs energy to a 5.8KWH lithium storage system consisting of two 2.9KWH Simpliphi Lithium batteries.
| Kit includes | 3.7 KW 48 Volt Battery-backed System | |
| Quantity | ||

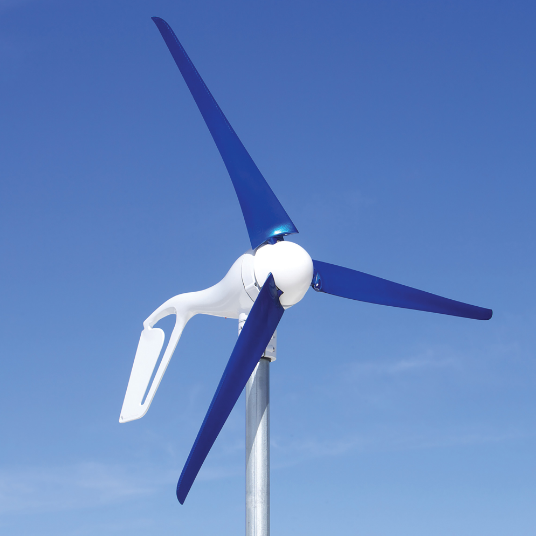

| 1 | Primus Windpower AIR 1-ARAR40-10-48-10-48 400W 48VDC Wind Turbine | |
| 12 | PEIMAR 310 WATT MONO SOLAR PANEL, ALL BLACK | |
| 1 | AIMS Power 4000 Watt Pure Sine Inverter Charger 48Vdc / 240Vac Input & 120/ 240Vac Split Phase Output | |
| 2 | Simpliphi 2.9 Lithium Battery (Model: PHI-2.9-48-60 (2918 Wh 48V) | |
| 1 | Primus Windpower Wind Control Panel | |
| 1 | 27 foot air turbine tower |
| # of items | Essential items not included in the above Kit package |
| 1 | 6 Position Combiner Box |
| 6 | 15 amp DC Breaker 150VDC DIN, 13mm |
| 1 | DC Surge Protector Device |
| 1 | Circuit Breaker, DIN Mount, 30A, 2-pole, 120/240VAC, UL1077 |
| 6 | 50' PV Wire, 10 AWG 600 VDC (UL4703) Male/Female MC4 Connectors |
| 2 | Inverter Battery Cables |
*Contact us to inquire about a three-Line diagram of the whole DC circuit, along with AC lines to the main panels or metered service entrance.
