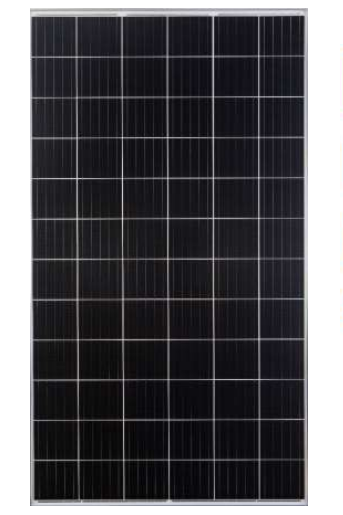

MISSION SOLAR: MISSION, 385W PV MODULE
| Product ID SWS#372 |
Product Description:
Mission, 385W PV Module, MC4-Compatible, PV Wire, 40mm Clear Frame, White Back Sheet, 72 Cell Mono-Perc, 20A Fuse, 1000VDC, 5BB, BAA,356.0 PTC, MSE385SR9S
The True American Brand
Mission Solar Energy is headquartered in San Antonio, TX., where we
manufacture our modules. We produce American, high quality solar
modules ensuring the highest in class power output and best in-class
reliability to our customers. Our product line is tailored for residential,
commercial and utility applications. Every Mission Solar Energy solar
module is certified and surpasses industry standard regulations, proving
excellent performance over the long-term. Demand the best, demand
Mission Solar Energy
CERTIFIED RELIABILITY
- Tested to UL1703 & IEC standards
- PID resistant
Advanced Technology
- PERC and 5 busbar drive >19.3% module efficiency
- Ideal for all applications
EXTREME WEATHER RESILIENCE
- 5631 Pa front and back load (117 psf) tested load to UL1703
BAA COMPLIANT FOR GOVERNMENT PROJECTS
- Buy American Act
- American Recovery and Investment Act
| ELECTRICAL SPECIFICATIONS | |
| Electrical Parameters at Standard Test Conditions (STC) | |
| Module Type | MSE385SR9S |
| Power Output | 385 Watts |
| Module Efficiency | 19.11 |
| Tolerance | 0˜+3% |
| Short-Circuit Current | 9.993 |
| Open Circuit Voltage | 48.53 |
| Rated Current | 9.426 |
| Rated Voltage | 40.84 |
| Fuse Rating | 20 |
| TEMPERATURE COEFFICIENTS | |
| Normal Operating Cell Temperature (NOCT) | 46.43°C (±2°C) |
| Temperature Coefficient of Pmax | -0.375% / °C |
| Temperature Coefficient of Voc | -0.280% / °C |
| Temperature Coefficient of Isc | 0.045% / °C |
| OPERATING CONDITIONS | |
| Maximum System Voltage | 1,500Vdc or 1000Vdc |
| Operating Temperature Range | -40°C (-40°F) to +85°C (185°F) |
| Maximum Series Fuse Rating | 20A |
| Fire Safety Classification | Type 1, Class C |
| Front & Back Load (UL standard) | 5631 Pa (117 psf) Tested to UL1703 standard |
| Hail Safety Impact Velocity | 25mm at 23 m/s |
| MECHANICAL DATA | |
| Solar Cells | P-type mono-crystalline silicon (158.75mm) |
| Cell Orientation | 72 cells (6x12), 5 busbar |
| Module Dimension | 1999mm x 1008mm x 40mm (78.7 in. x 39.68 in. x 1.58 in.) |
| Weight | 23 kg (50.7 lb) |
| Front Glass | 3.2mm (0.126 in.) tempered, low-iron, anti-reflective coating |
| Frame | Anodized aluminum alloy |
| Encapsulant | Ethylene vinyl acetate (EVA) |
| J-Box | Protection class IP67 with 3 bypass-diodes |
| Cables | PV wire, 1.2m (47.24 in.), 4mm / 12 AWG |
| Connector | MC4 Compatible |
| CERTIFICATIONS & TESTS | |
| IEC | 61215 - 61730 - 61701 - Salt mist |
| UL | UL 1703 listed |
