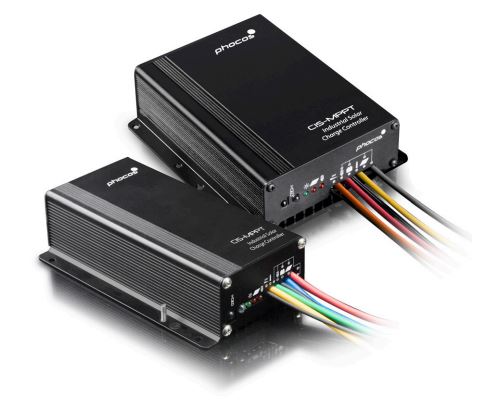

Phocos CIS-MPPT-85/15 Charge Controller
Off-grid PV systems exposed to extreme weather/environmental conditions impose increased risk of damage to the power electronics. In order to assure reliable battery protection under such conditions, Phocos developed the MPPT charge controller range to prevent corrosion: The CIS-MPPT series solar charge controllers.
The CIS-MPPT series include convenient and advanced lighting control, which allows you to decide whether you want the automatic lighting control with LED dimming to be either time or low-voltage activated.
Product Features
• Infrared-programmable load timing feature with dimming ideal
for lighting systems
• 2 year datalog of system performance data accessible via MXI-IR
interface, PC software (CISCOM)
• Up to 98% power conversion efficiency
• 3-stage I/V curve sweep algorithm increases battery lifespan
• Anodized aluminum extrusion with built-in heat dissipation
• Fully encapsulated design prevents damage from corrosion,
insects and/or dust
• Works in 12 or 24 V battery systems (automatic battery
voltage detection)
• Compatible with 60 cell modules
Battery Type - Lead acid (gel, AGM, flooded), adjustable
| Technical Data | CIS-MPPT-85/15 |
| System Voltage | 12/24 V auto recognition |
| Max. Charge/Load Current |
15A |
| Max PV Power Input | 250 W/500 W |
| Float Charge | 13.8/27.6 V (25 °C) |
| Main Charge | 14.4/28.8 V (25 °C), 0.5 h (daily) |
| Boost Charge | 14.4/28.8 V (25 °C), for 2 h; activation: battery voltage < 12.3/24.6 V |
| Equalization Charge | 14.8/29.6 V (25 °C), for 2 h; activation: battery voltage < 12.1/24.2 V |
| Max. Panel Voltage | 50/85 V |
| Idle Self-Consumption | 15 mA/8 mA |
| Deep-Discharge Protection |
11-11.9 V/22-23.8 V (SOC) |
| Cut-Off Voltage | 11-12.02 V/22-24.04 V (LVD) |
| Reconnect Level | 12.8 V/25.6 V |
| Overvoltage Protection | 15.5 V/31.0 V |
| Weight | 0.78 kg / 1.72 lbs |
| Dimensions (WxHxD) | 88.5 x 150 x 41.4 mm/ 3.5 x 6 x 1.6 in |
| Certification | CE |
..
